Product series · GJET

Stainless Steel Jet Pumps

Stainless steel jet-pump configurations for clean-water transfer, pressure supply and controller-integrated installations.

Request model confirmation

Typical use

Clean-water pressure supply
Automatic household systems
Light commercial transfer

Selection note

Confirm wetted materials, controller function, target pressure, voltage and whether constant-pressure control is required.

Source scope

22 models across 4 outlet or configuration ranges.

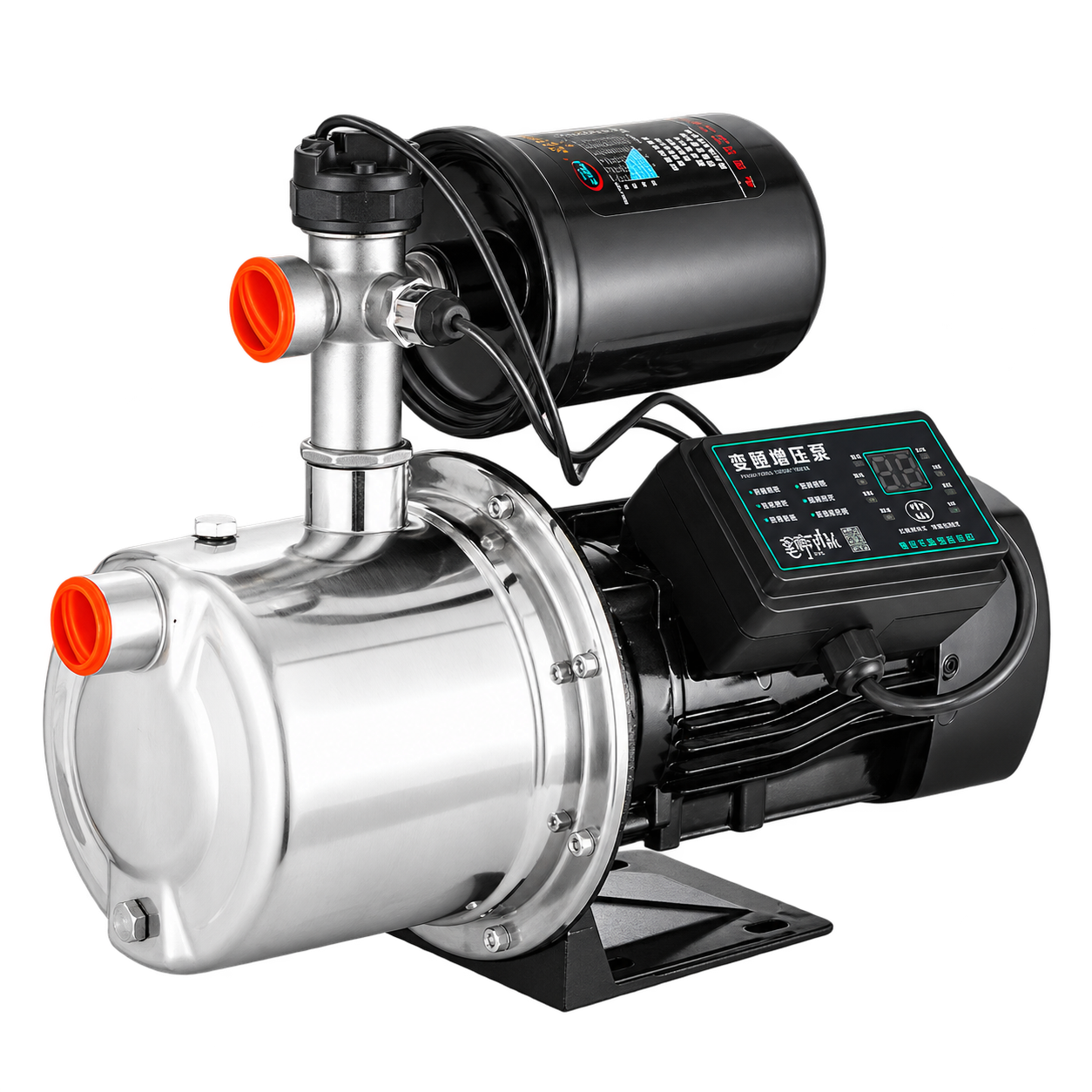

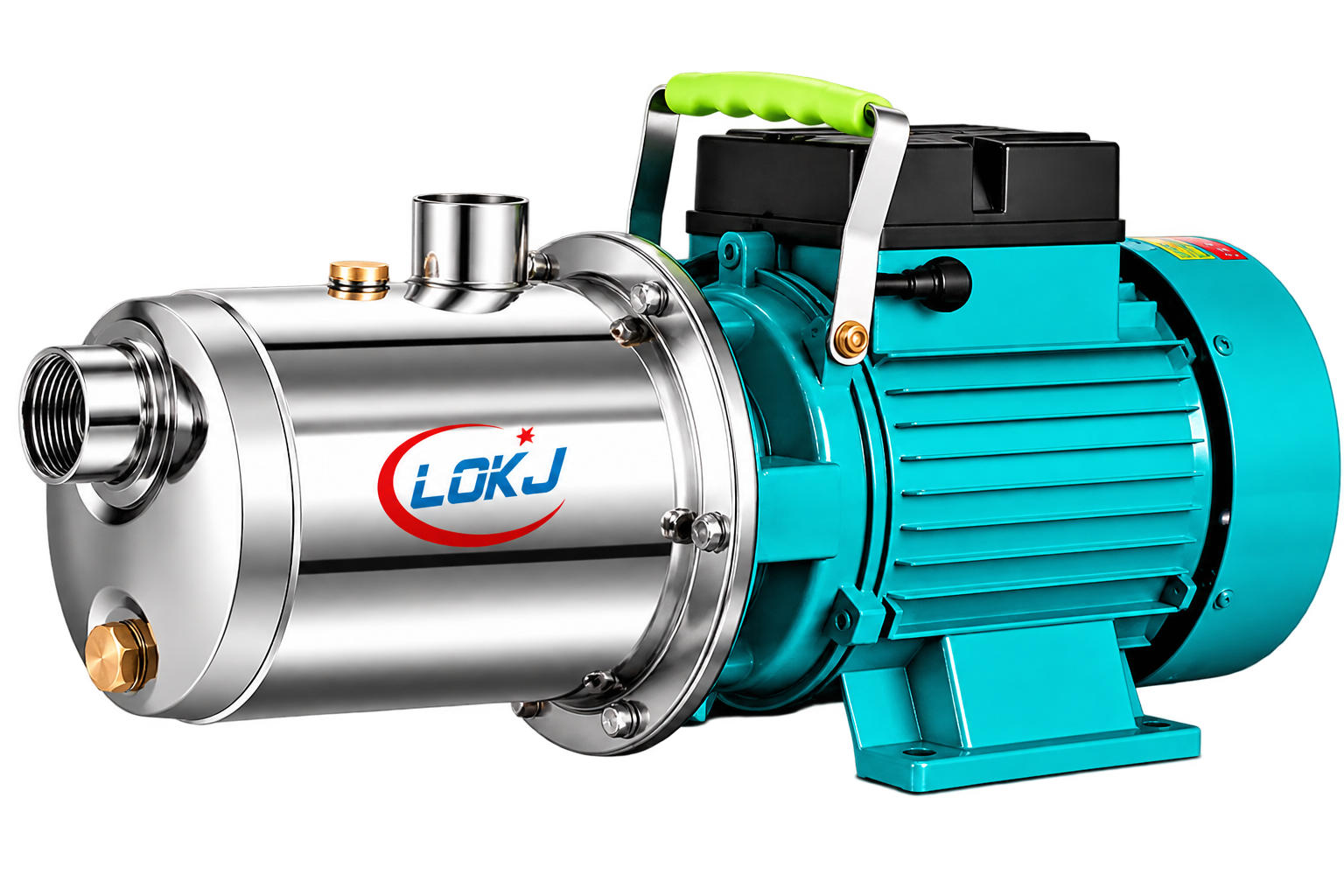

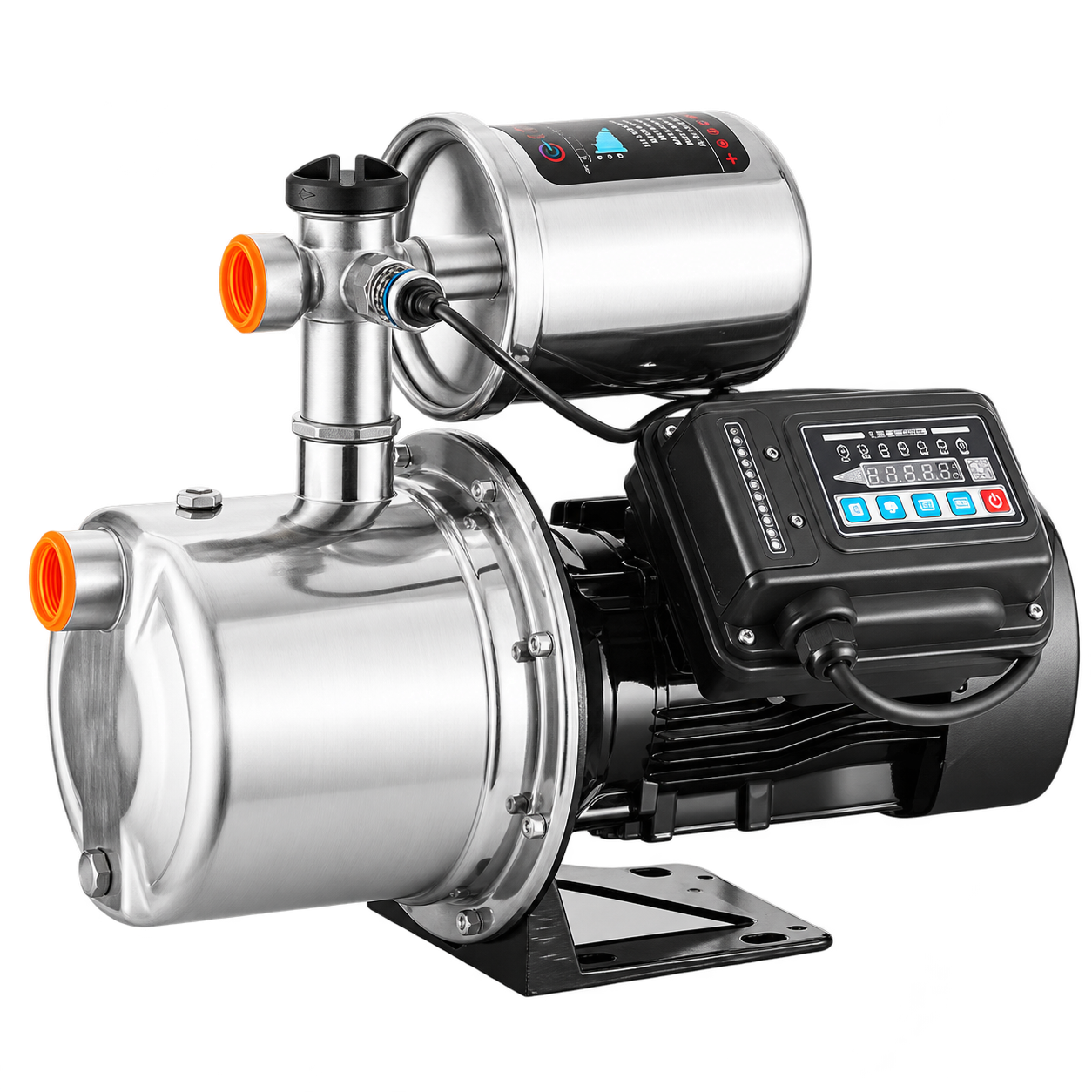

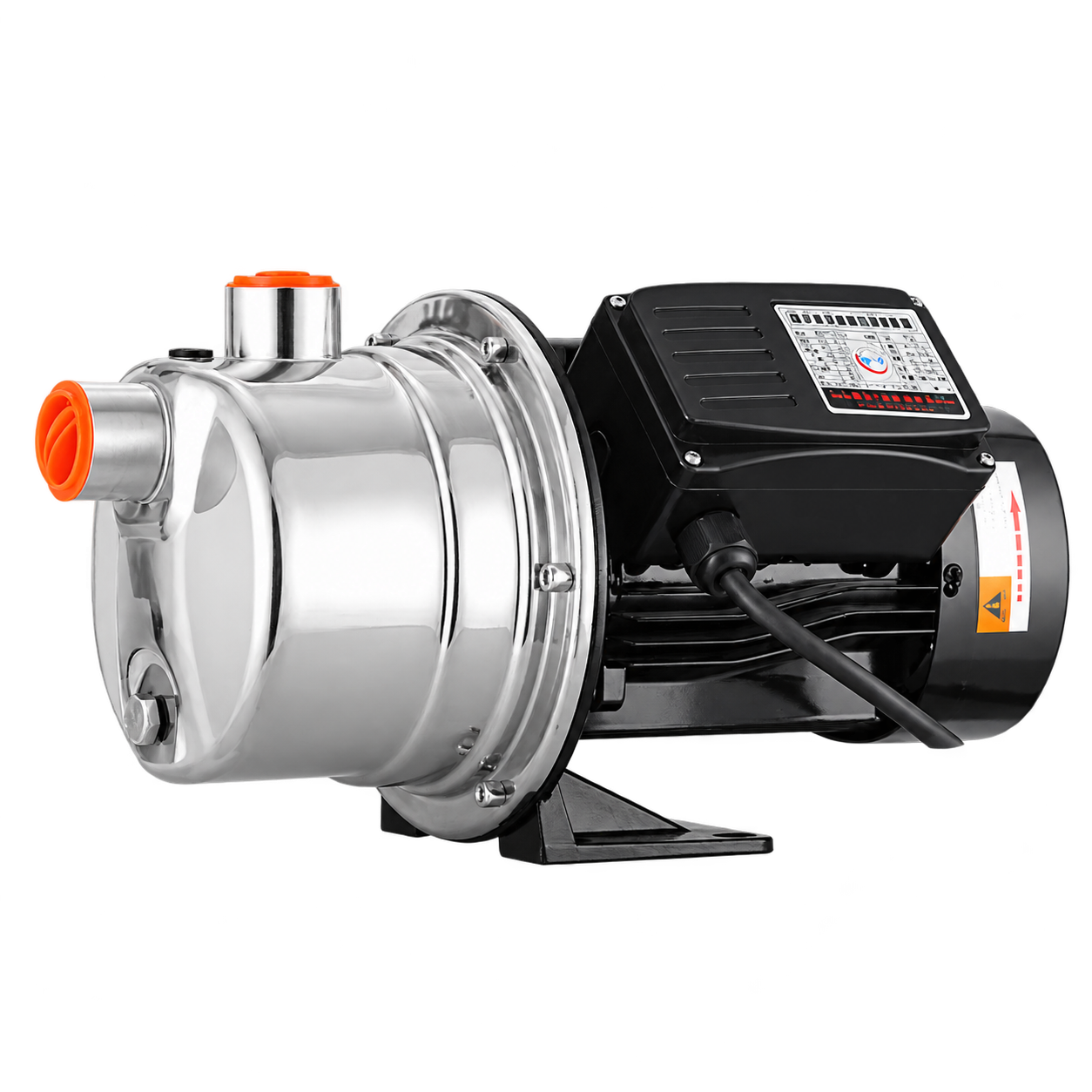

Product gallery

Representative configurations.

Appearance, labels, controller and supplied accessories can vary by model and order scope.

Technical data

Models from the supplied catalogue.

Values below are transcribed from the supplied source deck. A slash indicates multiple published values. Confirm the final datasheet and certified curve in the quotation.

Range 15

Stainless steel jet pump -DN25

6 listed models

Model	P(kW)	MaxQ(m³/h)	MaxH(M)	MAXSUCT	Voltage(V)	L ，W，H(MM)
GJET-33-0.37	0.37	3.2	33	9	180-240V380-415V110V/60HZ+150	220x210x200
GJET-42-0.55	0.55	4	42	9		220x210x200
GJET-48-0.75	0.75	4.5	48	9		220x210x200
GJET-57-1.1	1.1	5.3	58	9		450x210x220
GJET-62-1.5	1.5	5.7	62	9		450x210x220
GJET-67-2.2	2.2	6.5	67	9		470x210x220

Model performance referenceCurves start at Q = 0

Indicative curves are constructed from the supplied maximum head at Q = 0 and maximum flow at H = 0. Confirm the certified model curve before final selection.

Range 16

Stainless steel jet pump -DN25 Constant Pressure | Smart Water Supply

6 listed models

Model	P(kW)	MaxQ(m³/h)	MaxH(M)	MAXSUCT	Voltage(V)	L ，W，H(MM)
GJET-33-0.37AT	0.37	3.2	33	9	180-240V380-415V110V/60HZ+150	250x230x450
GJET-42-0.55AT	0.55	4	42	9		250x230x450
GJET-48-0.75AT	0.75	4.5	48	9		250x230x450
GJET-57-1.1AT	1.1	5.3	58	9		450x230x450
GJET-62-1.5AT	1.5	5.7	62	9		450x230x450
GJET-67-2.2AT	2.2	6.5	67	9		470x230x450

Model performance referenceCurves start at Q = 0

Indicative curves are constructed from the supplied maximum head at Q = 0 and maximum flow at H = 0. Confirm the certified model curve before final selection.

Range 17

S tainless steel jet pump -DN25

6 listed models

Model	P(kW)	MaxQ(m³/h)	MaxH(M)	MAXSUCT	Voltage(V)	L ，W，H(MM)
GJET-33-0.37AT	0.37	3.2	33	9	180-240V380-415V110V/60HZ+150	250x230x460
GJET-42-0.55AT	0.55	4	42	9		250x230x460
GJET-48-0.75AT	0.75	4.5	48	9		250x230x460
GJET-57-1.1AT	1.1	5.3	58	9		450x230x460
GJET-62-1.5AT	1.5	5.7	62	9		450x230x460
GJET-67-2.2AT	2.2	6.5	67	9		470x230x460

Model performance referenceCurves start at Q = 0

Indicative curves are constructed from the supplied maximum head at Q = 0 and maximum flow at H = 0. Confirm the certified model curve before final selection.

Range 18

Stainless steel jet pump DN40/ DN50

4 listed models

Model	P(kW)	MaxQ(m³/h)	MaxH(M)	MAXSUCT	Voltage(V)	L ，W，H(MM)
40JET-2200S	2.2	10	60	9	180-240V380-415V110V/60HZ+150	470x210x220
40JET-3000S	3	15	60	9		470x210x220
50JET-2200S	2.2	25	50	9		470x210x220
50JET-3000S	3	30	50	9		470x210x220

Model performance referenceCurves start at Q = 0

Indicative curves are constructed from the supplied maximum head at Q = 0 and maximum flow at H = 0. Confirm the certified model curve before final selection.

Need a duty-point review?

Send flow, total head and liquid details.

We will help narrow the model range and identify any information still required.

Prepare a pump brief
