Product series · WZB
Compact self-priming surface pumps, including automatic configurations, for clean-water supply and local boosting.
Typical use
Selection note
Confirm the controller type, pressure target, suction lift, inlet conditions and motor supply for automatic operation.
Source scope
10 models across 3 outlet or configuration ranges.

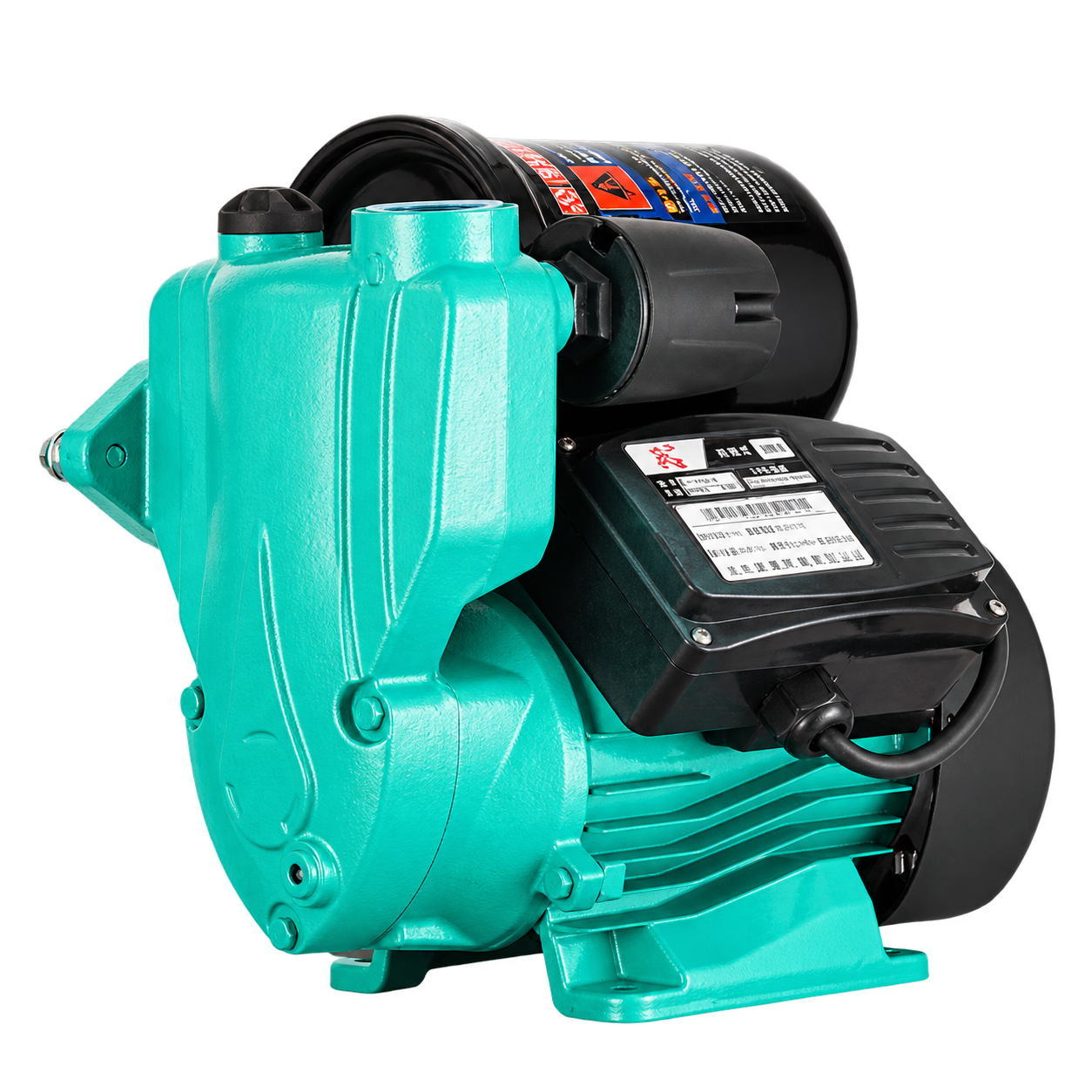

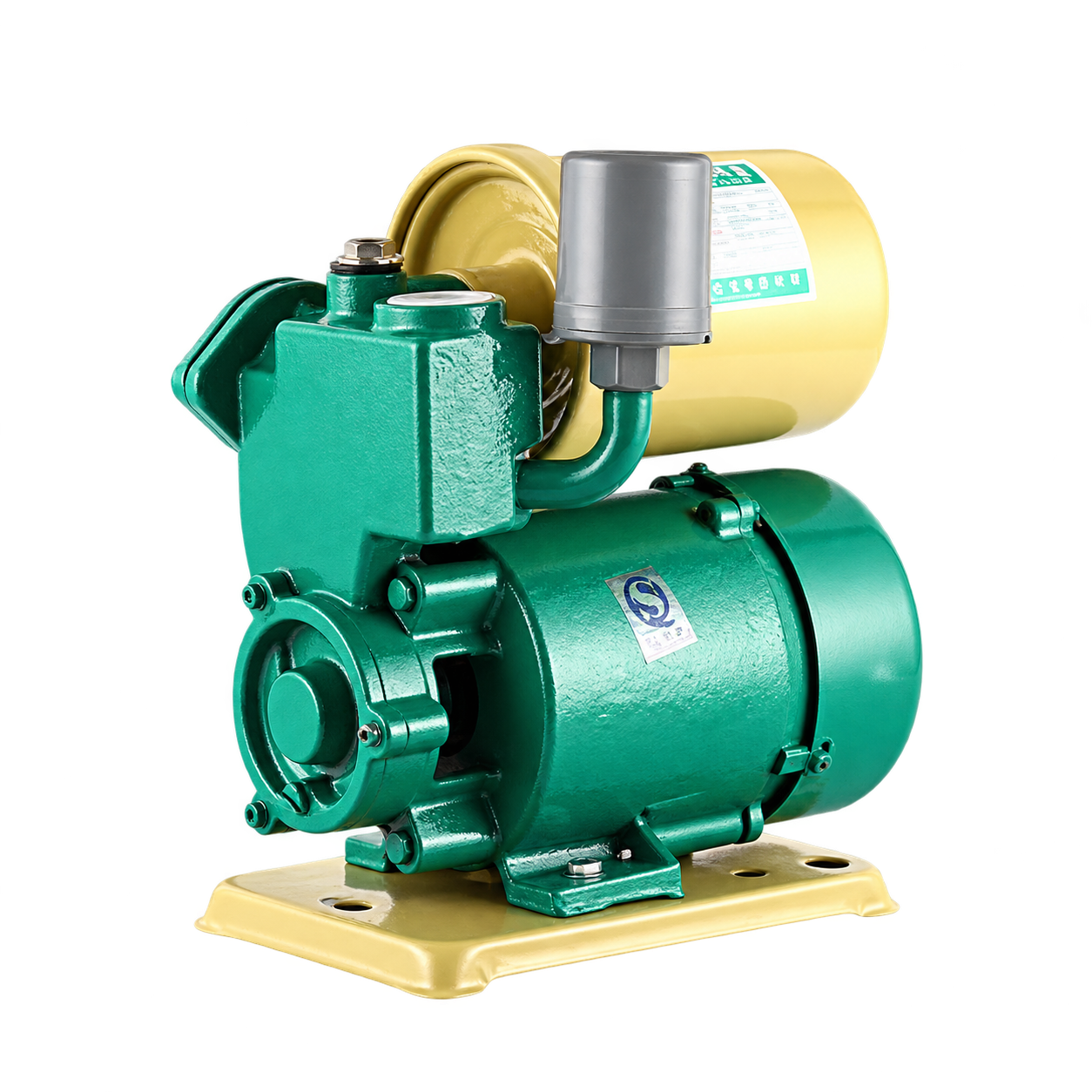

Product gallery
Appearance, labels, controller and supplied accessories can vary by model and order scope.
Technical data
Values below are transcribed from the supplied source deck. A slash indicates multiple published values. Confirm the final datasheet and certified curve in the quotation.
1 listed model
| Model | P(kW) | MaxQ(m³/h) | MaxH(M) | MAXSUCT | Voltage(V) | L ，W，H(MM) |
|---|---|---|---|---|---|---|
| WZB-0.25AT | 0.25 | 2 | 33 | 9 | 220 | 250x160x210 |
Indicative curves are constructed from the supplied maximum head at Q = 0 and maximum flow at H = 0. Confirm the certified model curve before final selection.
5 listed models
| Model | P(kW) | MaxQ(m³/h) | MaxH(M) | MAXSUCT | Voltage(V) | L ，W，H(MM) |
|---|---|---|---|---|---|---|
| WZB-0.37 | 0.37 | 2 | 35 | 9 | 220/380 | 250x160x210 |
| WZB-0.55 | 0.55 | 2.5 | 40 | 9 | 250x160x210 | |
| WZB-0.75 | 0.75 | 3 | 45 | 9 | 270x170x230 | |
| WZB-1.1 | 1.1 | 4 | 50 | 9 | 290x190x240 | |
| WZB-1.5 | 1.5 | 5 | 65 | 9 | 290x190x240 |
Indicative curves are constructed from the supplied maximum head at Q = 0 and maximum flow at H = 0. Confirm the certified model curve before final selection.
4 listed models
| Model | P(kW) | MaxQ(m³/h) | MaxH(M) | MAXSUCT | Voltage(V) | L ，W，H(MM) |
|---|---|---|---|---|---|---|
| WZB7-65-1.5 | 1.5 | 7 | 65 | 9 | 180-240V 380-415V | 250x160x210 |
| WZB10-75-2.2 | 2.2 | 10 | 75 | 9 | 250x160x210 | |
| WZB12-65-1.5 | 1.5 | 12 | 65 | 9 | 270x170x230 | |
| WZB-15-75-2.2 | 2.2 | 15 | 75 | 9 | 290x190x240 |
Indicative curves are constructed from the supplied maximum head at Q = 0 and maximum flow at H = 0. Confirm the certified model curve before final selection.
